| Merknaam: | Mstar |
| Modelnummer: | LXC-1738-140-NF |
| MOQ: | 1 |
| Prijs: | 32 |
| Verpakking: | 25*20*10 cm stuk/stuk |
| Betalingsvoorwaarden: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

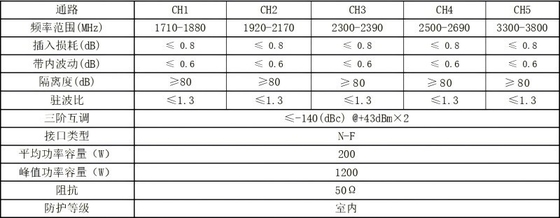

| De weg. | CH1 | CH2 | CH3 | CH4 | CH5 |
| Frequentiebereik ((MHz) | 1710-1880 | 1920 tot en met 2170 | 2300-2390 | 2500-2690 | 3300-3800 |
| 插入损耗 (dB) | ≤ 0.8 | ≤ 0.8 | ≤ 0.8 | ≤ 0.8 | ≤ 0.8 |
| 带内波动 (dB) | ≤ 0.6 | ≤ 0.6 | ≤ 0.6 | ≤ 0.6 | ≤ 0.6 |
| 隔离度 (dB) | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 |
| 驻波比 | ≤ 1.3 | ≤ 1.3 | ≤ 1.3 | ≤ 1.3 | ≤ 1.3 |
| - Drie stappen. | ≤-140 ((dBc) @+43dBmX2 | ||||
| 接口类型 | N-F | ||||
| 平均功率容量 ((W) | 200 | ||||
| 峰值功率容量 ((W) | 1200 | ||||
| 阻抗 | 509 | ||||
| 防护等级 | 室内 | ||||
|
|
